Example post: images, GIFs and screen recordings

Every way to put screenshots, GIFs and short screen recordings into a post, with the exact text to copy for each one.

Misc#meta#writing

This post shows each way to add pictures to a write-up. Every example below is live, so you can see the result and copy the text above it. All images for a post live in one folder, assets/img/<post-name>/; this post’s are in assets/img/example-post-with-images-and-gifs/.

Click any image to see it full size. Press Esc or click again to close it.

The quickest way: paste a screenshot

1. Take a screenshot with Win + Shift + S.
2. Click where you want it in your post and press Ctrl + V.

VS Code saves the image into this post’s folder and inserts a line like this:

![Alt text](../assets/img/my-post/image.png)

Change Alt text to a short description of what the image shows, and rename the file to something meaningful (image.png → edr-alert.png). You can also drag image files from File Explorer into the post; they’re copied into the same folder.

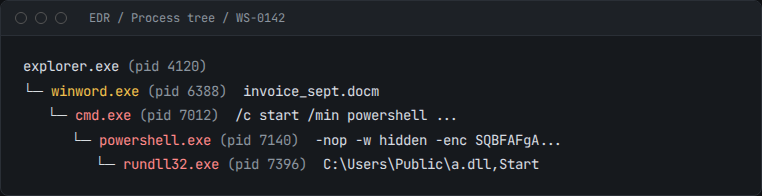

A plain image

The simplest form, for an image that needs no caption:

![Process tree showing Word launching PowerShell](/assets/img/example-post-with-images-and-gifs/process-tree.png)

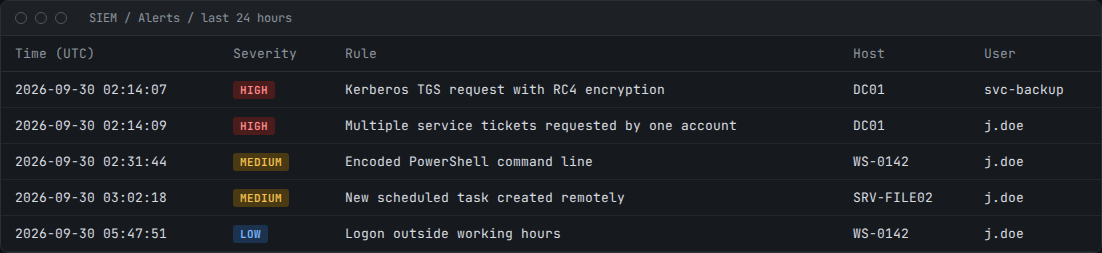

An image with a caption

Type fig and press Ctrl + Space to insert this. Captions can include code and bold.

{% include figure.html src="/assets/img/example-post-with-images-and-gifs/siem-alerts.png" alt="SIEM alert list showing Kerberoasting alerts on DC01" caption="The first two alerts fired within two seconds of each other on `DC01`." %}

The first two alerts fired within two seconds of each other on DC01.

A wide image

For dashboards and wide screenshots, add wide=true (shortcut: figwide). On a computer the image spreads wider than the text; on a phone it fits the screen as normal.

{% include figure.html src="/assets/img/example-post-with-images-and-gifs/siem-alerts.png" alt="…" caption="…" wide=true %}

The same alert list, shown wide so the columns are easier to read.

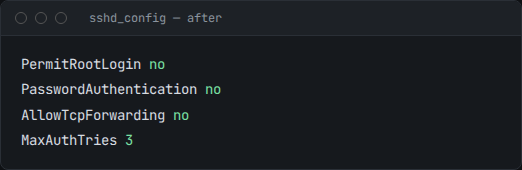

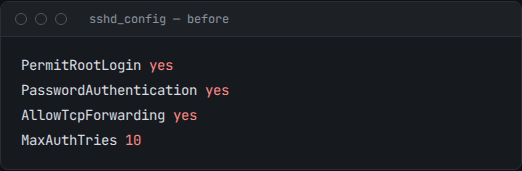

Two images side by side

Good for before-and-after comparisons (shortcut: figpair). On phones they stack one above the other.

{% include figure.html src="/assets/img/example-post-with-images-and-gifs/sshd-before.png" alt="sshd_config before hardening" src2="/assets/img/example-post-with-images-and-gifs/sshd-after.png" alt2="sshd_config after hardening" caption="Four settings changed in `sshd_config`." %}

Four settings changed in sshd_config.

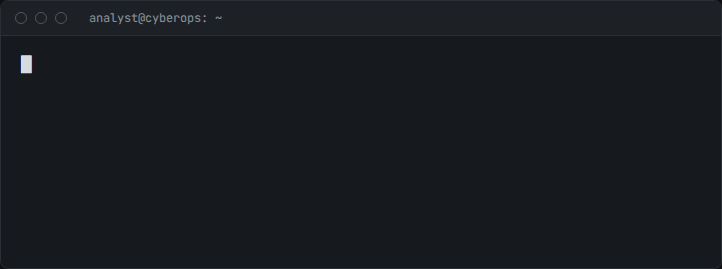

A GIF

GIFs work exactly like images: use either form above and point it at the .gif file (shortcut: gif).

{% include figure.html src="/assets/img/example-post-with-images-and-gifs/nmap-scan.gif" alt="Terminal running an Nmap service scan" caption="A service scan against the test host." %}

A service scan against the test host (GIF, 59 KB).

A screen recording (better than a GIF)

The same animation saved as an MP4 video is a third of the size, and the gap grows with longer or more colourful clips. It plays exactly like a GIF: silent, looping, and starting by itself (shortcut: video).

{% include video.html src="/assets/img/example-post-with-images-and-gifs/nmap-scan.mp4" alt="Terminal running an Nmap service scan" caption="The same scan as a video." %}

The same scan as a video (MP4, 19 KB).

For longer recordings that readers might want to pause, add controls=true. The clip then waits for the reader to press play and shows a timeline.

Tip

To turn a GIF into an MP4, install ffmpeg once with winget install Gyan.FFmpeg, then run:

ffmpeg -i clip.gif -movflags +faststart -pix_fmt yuv420p -vf "scale=trunc(iw/2)*2:trunc(ih/2)*2" clip.mp4

Windows’ built-in Snipping Tool can also record your screen straight to MP4: press Win + Shift + R.

Keeping images light

The free hosting plan holds 250 MB for the whole site, and large images also slow pages down. A few habits keep both in check:

Kind of image	Best format	Aim for
Screenshots, diagrams, terminal output	PNG	Under 300 KB
Photos	JPG or WebP	Under 300 KB
Short animations	MP4 (via video.html)	Under 2 MB
GIFs you can’t convert	GIF	Under 3 MB

Crop screenshots to the part that matters before pasting, and keep them no wider than about 2,000 pixels. Before publishing, check every image for anything sensitive: hostnames, usernames, tokens, IP ranges. Cover them with solid boxes rather than blur.
